Description

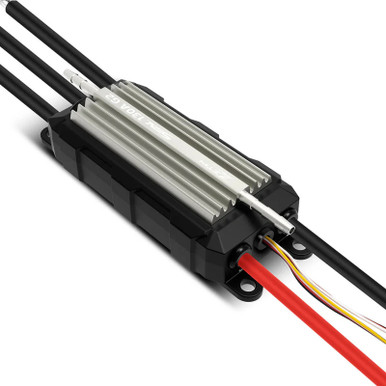

ZTW have released a new 32-bit version of the Seal 130A with new compact design, shorter, and narrower than its predecessor.
The SEAL G2 Series is designed specifically for RC Boat applications, featuring a waterproof design. The 130A ESC comes with built-in BEC, so you don’t need an additional battery pack to operate the servo. In order to protect the boat, the ESC offers a power reduction when too hot and an optional Low Voltage Cutoff.
Key Features:
- Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
- High Current XT90 Plug fitted.
- Adopting high performance 32 bit microprocessor, the operation frenquency is up to 170MHz which makes the ESC stronger computing ability and faster running speed.
- The waterproof design (rates as IP 67) allows this ESC to work in wet conditions, and it is equipped with metal water cooling to ensure efficient heat dissipation.
- Super smooth start-up and accurate throttle linearity make the ESC suitable for various of applications such as, all kinds of RC boat models, electric surfboard and other underwater applications.
- The SC has two running modes for different applications:“Forward Only” and “Forward and Backward”.
- The ESC has freewheeling which makes the ESC with higher driving efficiency and more energy-saving.
- Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss, over-current, abnormal power-on voltage, over-load protection.
- Support high RPM motors, and compatible with most motors in the market.
- Support programming via Phone App or LCD program card, easier and more convenient operation(Extra Bluetooth Module or LCD program card G2 needed.)
- The ESC has data returning feature, it can send data in real-time: current, voltage, temperature, RPM, throttle and ESC status. And you can check the data via ZTW App or LCD program Box G2 in real-time.
Technical Specifications:
Model : Seal G2 130A 3-8S
Continuous Current(A): 130 Amps
Burst Current(A): 780 Amps
Voltage Input : 3-8S Lipo – Note: XT90 Plug Fitted
Power Wire : 10 Gauge 88mm-Red/88mm-Black
Motor Wire : 10 Gauge 112mm-Black
BEC Output : 6V,7.4V, 8.4V Adjustable 8A
Size(not including wires) :95mm*44mm*27mm(L*W*H)
Weight : 205g
