Description

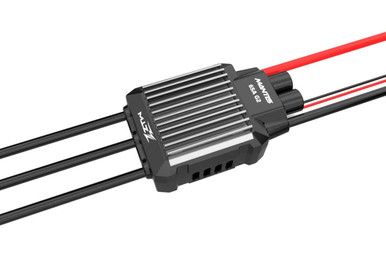

ZTW Mantis G2 65A ESC 3-6S (SBEC 8A)
The ZTW Mantis series is designed as a performance upgrade for your stock/OEM ESC. Its performance, feature set, and stability make it the perfect enhancement for your RC electric airplane or helicopter. It features compact size, lightweight, simplified PCB design, super-smooth start-up and throttle linearity, multiple circuit protections, governor, high amp BEC output and more. If you want to boost the performance of your stock ESC, the ZTW Mantis is an ideal choice offering a long list of advanced features and solid, reliable construction.
Equipped with a powerful high-performance 32-bit microprocessor, the ESC responds faster, start-up is smoother, and the throttle linearity is optimized.
Includes protection for start-up, overheating, low-voltage cut-off, phase loss, signal loss, etc., to ensure your components stay in working order
Key Features:
- Supports high RPM motors and can be used with most RC motors
- Fully programmable via the ZTW G2 programming card
- Saves energy through greater efficiency
- Super smooth and accurate throttle linearity
- Power arming protection (prevents the motor from accidentally running when switched ON)
- Auto throttle shut down in a signal loss situation
- Safety thermal over-load protection
- Uses the new generation of the MOSFET to ensure the ESC stays within operating temperatures and can support peak current draws
- High performance 32-bit microprocessor
Technical Specifications:
Continuous Current: 65A
Burst Current: 75A
Strong BEC Output: 6.0V/7.4V/8.4V 8A
Battery: 3-6S Lipo
Size: 60mm x 35mm x 23mm
Weight: 56g
Programming way: transmitter/LCD program card G2/IOS & Androïd app (Program Card -Sold Separately)
Note: this ESC is delivered without plug except the receiver plug.
