Description

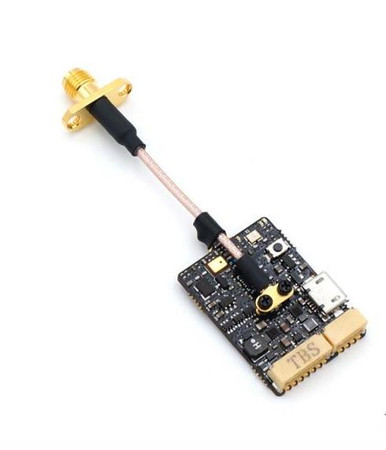

TBSUNIFYEVO TEAM BLACK SHEEP UNIFY EVO
SPECIFICATIONS
- Operating Voltage: 6V – 26V (2S – 6S)
- Supply current: (25mW) ~ 0.11A | (100mW) ~ 0.13A | (400mW) ~ 0.18A | (full power) ~ 0.24A
- Operating Temperature: watch for normal airflow
- Video Input Impedance: 75 Ohm
- Weight: 7g
- Dimensions: 30 x 23 x 5.5mm
- Antenna Connector: u.FL socket
- Video Format: NTSC/PAL
- Audio: Microphone included
- Output Power: 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 29dBm (800mW)
INCLUDED
- 1x TBS UNIFY EVO 5G8 Video transmitter
- 1x u.FL pigtail SMA
- 1x Power, Camera and CRSF cables
DOWNLOADS
- TBS UNIFY EVO Manual
- TBS UNIFY EVO Manual (German)
- Barcode Catalog
- Declaration of Conformity
3RD PARTY APPS
- Barcode App by Swiss Fries
- Barcode App by APOC
