Description

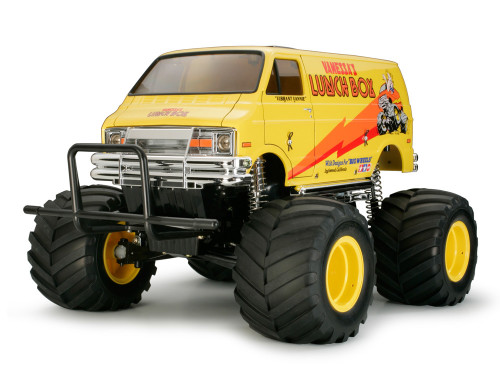

Tamiya 1/12 RC Lunch Box Kit
This R/C assembly kit recreates a fun and boxy classic VAN with over-sized monster truck tires. It is one of Tamiya’s classic creations from the 1980’s (First released in 1987). It has been a fan favorite for its original appearance as much as for its R/C performance. The boxy minivan body has been raised up over monster truck wheels to ensure that this R/C van will grab the attention wherever you choose to drive it.
2WD Chassis Mounted on Big 115mm Diameter Tires
The durable and easy-to-assemble 2WD chassis employs a box type frame, and features front independent swingarms and a rear rolling rigid suspension. Big 115mm diameter tires offer dynamic running on even the toughest of surfaces. Sealed gearbox protects the diff gear from dirt and sand during off-road driving. Rear mounted wheelie bar enables wild stunt driving.
Features
- Body reproduces popular American style van
- Sealed gearbox protects differential
- Box type ABS frame for off road running
- Heavy duty coil spring damped suspension
Specs
Length 385mm
Width 290mm
Height 225mm
Weight 1,560g (not including R/C mechanism and battery)
Wheelbase 207mm
Tread 212mm (Front), 216mm (Rear)
F/R Tire Width/Diameter 71/115mm
Gear Ratio 14.7:1
Bearings Plastic Bushing
Body Material ABS Plastic
Body Stickers Included
Chassis Material ABS Plastic
Chassis Type CW-01
Construction Type Assembly Kit
Differential Type Gear
Drive Type 2WD
Electronic Speed Control (esc) Includes Hobbywing THW 1060 Brushed Motor ESC (2-3S)
Motor 540-brushed type
Scale 1/12
Shock Damper Friction type
Suspension Independent front/solid axle rear
Terrain Use Multi-Purpose
Includes
(1) 1/12 Lunch Box RC Kit
(1) Brushed ESC
(1) Brushed Motor
Manual and Decals
Required To Complete
2-channel radio
Steering servo
7.2 volt battery with Tamiya style connector & battery charger
Paint
-
Parts
- Parts and Hop-ups 1/12 Lunch Box Kit
