Description

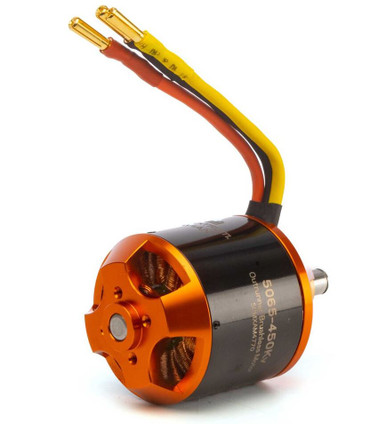

Take to the Skies with Spektrum Avian Brushless Motors for Fixed-wing Models -20CC Equivalent!
The combination of superior performance, high reliability and user-friendly features makes the Spektrum Avian Brushless Motors an excellent choice for your next aircraft project. Plus, the wide selection means there’s Avian Brushless motor that’s ideal for whatever the application, including brushed-to-brushless upgrades as well as combustion-to-electric conversions. Equip your airplane with an Avian motor to compliment your Smart Technology equipped models!
Key Features:
- Lightweight design
- Powerful and durable Rare-Earth Neodymium magnets
- 14-pole stator for smooth and precise propulsion
- Includes all required hardware: preinstalled gold plated bullet connectors, aluminum motor mount, prop adapter and female ESC connectors
- Perfect match for the Spektrum Smart Avian 100 amp ESC
- Perfect electric conversion upgrade for 20cc size gas combustion power systems
Important Specs:
- Recommended Voltage Range – 18.5 – 22.2V / 5-6S LiPo
- Recommended Propeller Range – 16×6 to 17×8 Electric Propeller
- Recommended Model Flying weight – 3D 4080 g (9 lbs) – Sport 6520 g (14.5 lbs)
- Max Wattage – 1200w
- Max Current – Max Burst Amps (85A) Max Continuous Amps (80A)
Technical Specifications:
Adjustable Timing: No
Connector Type: 4mm Bullet
Idle Current (Io): 2.3A
Input Voltage: 18.5 – 22.1V
Maximum Burst Current: 80A
Maximum Continuous Current: 50A
Motor Type: Brushless – Outrunner
Outer Diameter: 2″ (51 mm)
Product Length: 2.6″ (66 mm)
Product Weight: 14.1oz (400g)
Recommended Speed Control: 80A
RPM/Volt (Kv): 450
Shaft Diameter: 0.32″ (8 mm)
Shaft Length: 0.79″ (20 mm)
