Soundtraxx 852002 MC2H104AT HO Scale [Board Replacement DCC Decoder]

Description

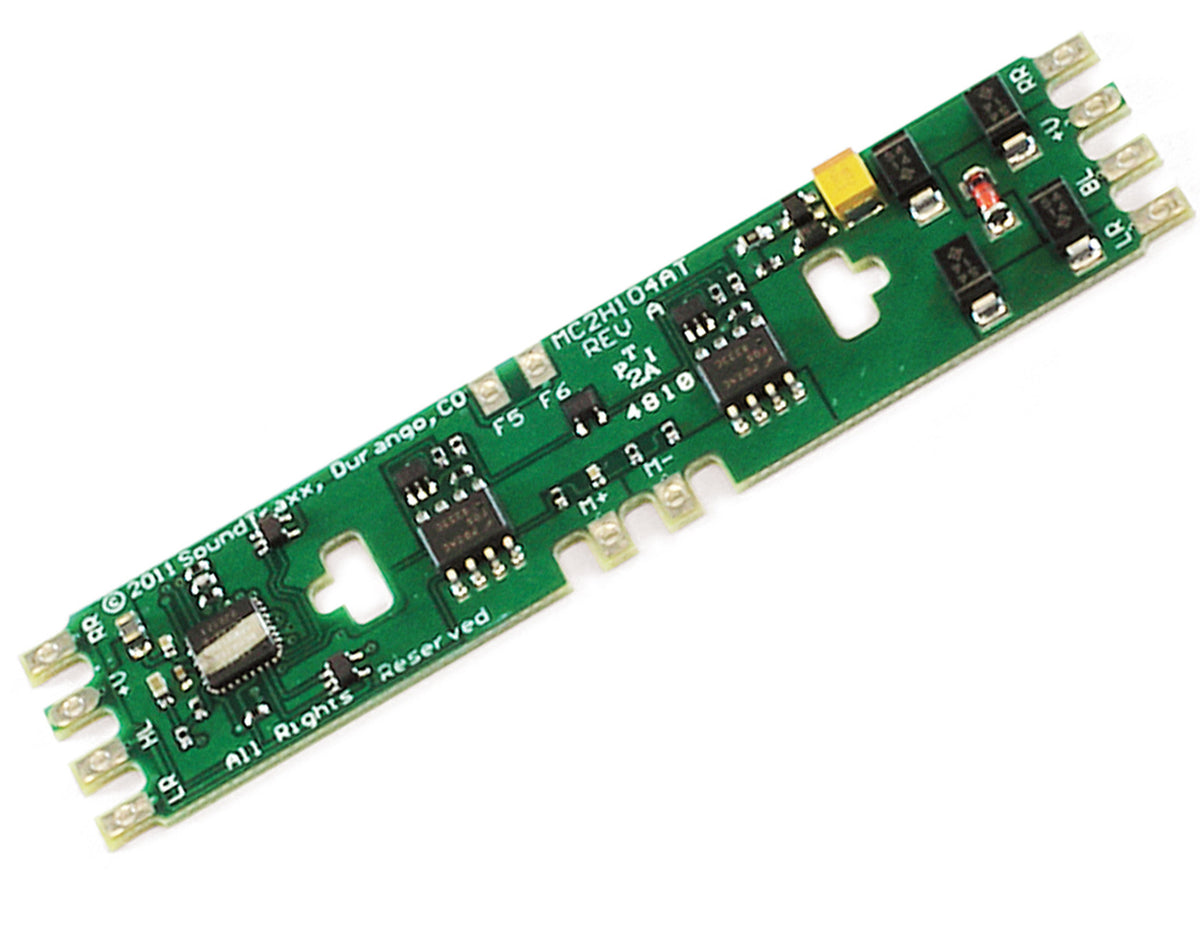

Soundtraxx 852002 MC2H104AT HO Scale [Board Replacement DCC Decoder]

Dual Mode, will operate on DC

HO-scale, 4-function decoder that measures 74 x 17 x 3mm designed to replace the existing manufacturer light board in Atlas HO diesel models, some InterMountain Railway models, and those using a similar physical design. This decoder will operate in both DC and DCC.

SPECIFICATIONS:

• Dimensions: 74 x 17 x 3mm
• Max. Motor Stall Current: 1A
• Max. Function Current: 100mA (each output)
• Function Outputs: 4
• DCC Track Voltage: 22 Volts Maximum
