Description

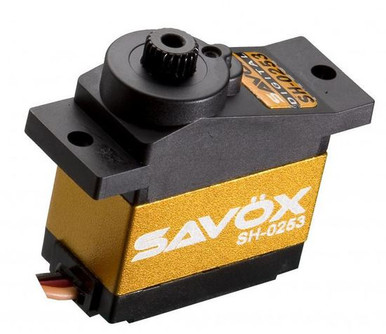

Savox SH-0253 Super Speed Micro Digital Servo 2.2KG/0.09Sec
This is the Savox SH-0253 Super Speed Micro Digital Servo with soft start.
Features:
- Over-spec refined design out performs ordinary micro size servos.
- The metal case design looks good and allows for cooler and smoother operating temps.
- Metal gears forms a solid framework for precise control and operation.
- Soft Start
- Strict production and quality control of plastic components ensure quality construction.
- Our servos are totally green – from materials to production, these servos are environmentally friendly.
- Ideal for CCPM and Rudder on 450 class heli’s and Park Flyer Airplanes.
Specs:
- Speed @ 4.8V: 0.13 sec/60
- Torque @ 4.8V: 25 oz-in / 1.8Kg-cm
- Speed @ 6.0V: 0.09 sec/60
- Torque @ 6.0V: 30.6 / 2.2 kg-cm
- Dimensions(mm): 22.8X12.0X25.4
- Weight(g): 13.6
- Gear: Metal & Plastic
- Bearing: 1BB
- Case: Aluminum
- 21 Tooth Spline
- Frequency: 200-250hz
- Pulse Width Frequency: 1520
