OSM38600 O.S. GT60 Gasoline w/Muffler
Note: Graves RC Coupons are not applicable with this product

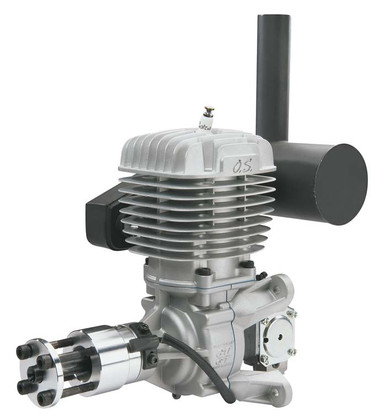

O.S. GT60 Gasoline w/Muffler
| Features: |
- Linerless cylinder with the cylinder head integrated with the cylinder, this arrangement allows for extremely precise intake/exhaust timing and very high scavenging efficiency resulting in higher output
- IG-02 electronic ignition system can be powered by 4-6 cell NiCd/NiMH batteries or 2-cell LiPo batteries
- Custom designed Walbro carburetor mounted to rear of engine with integrated choke rod guide
- Two year limited warranty through Hobby Services beginning at date of purchase
| Includes: |
O.S. GT60 Gasoline Engine, IG-02 Electronic Ignition. E6020 Muffler, CM6 Spark Plug
| Requires: |
Propeller: Break-In 23×8
Acro/Scale 22×10-12, 23×8-10, 24×8-10
Unleaded regular gasoline (no need to use high octane)
Two-Cycle Oil: Break-In, Klotz Modelube recommended, mix at 30:1 gas/oil mixture for 10 flights, 1.3 – 1.6 gallons (5-6 liters) of gas
After Break-In: mix at 50:1 ratio
Electric starter NOTE, The propeller must be brought up to at least 100RPM in order for the electronic ignition to work
| Specifications: |
Displacement: 3.656 (59.91cc)
Bore: 1.732″ (44.0mm)
Stroke: 1.551″ (39.4mm)
RPM Range: 1,600-8,000 RPM
Output: 6.00 hp @ 7,000 RPM
Weight: Engine, 49.38oz (1400g)
Ignition module, 3.7oz (105g)
Muffler: 6.28oz (178g)
Suggested Propeller Size and RPM Data:
22×10 6,900 RPM
23×8 7,000 RPM
24×8 6,550 RPM
24×10 6,150 RPM
Distance/Vertical Mounting Hole Centers: 2.6″ (66mm)
Distance/Horizontal Mounting Hole Centers: 3.1″ (78mm)
Height of Mounting Tabs: 3.4″ (85.6mm)
Height Lower Mounting Tab/Top of Cylinder Head: 6.9″ (175mm)
Height Lower Mounting Tab/Crankshaft Center: 1.7″ (42.8mm)
Height Crankshaft Center/Top of Cylinder Head: 5.2″ (132.2mm)
Cylinder Head Width: 6.6″ (168mm)
Width at Mounting Tabs: 3.8″ (97.6mm)
Center of Muffler Mounting Holes: 1.6″ (40mm)
Distance/Crankshaft Center to Muffler Hole Center: 2.7″ (69.5mm)
Length from Carburetor to Backplate: 1.5″ (38.8mm)
Manuals:
OSMGT60-Manual-English
