Description

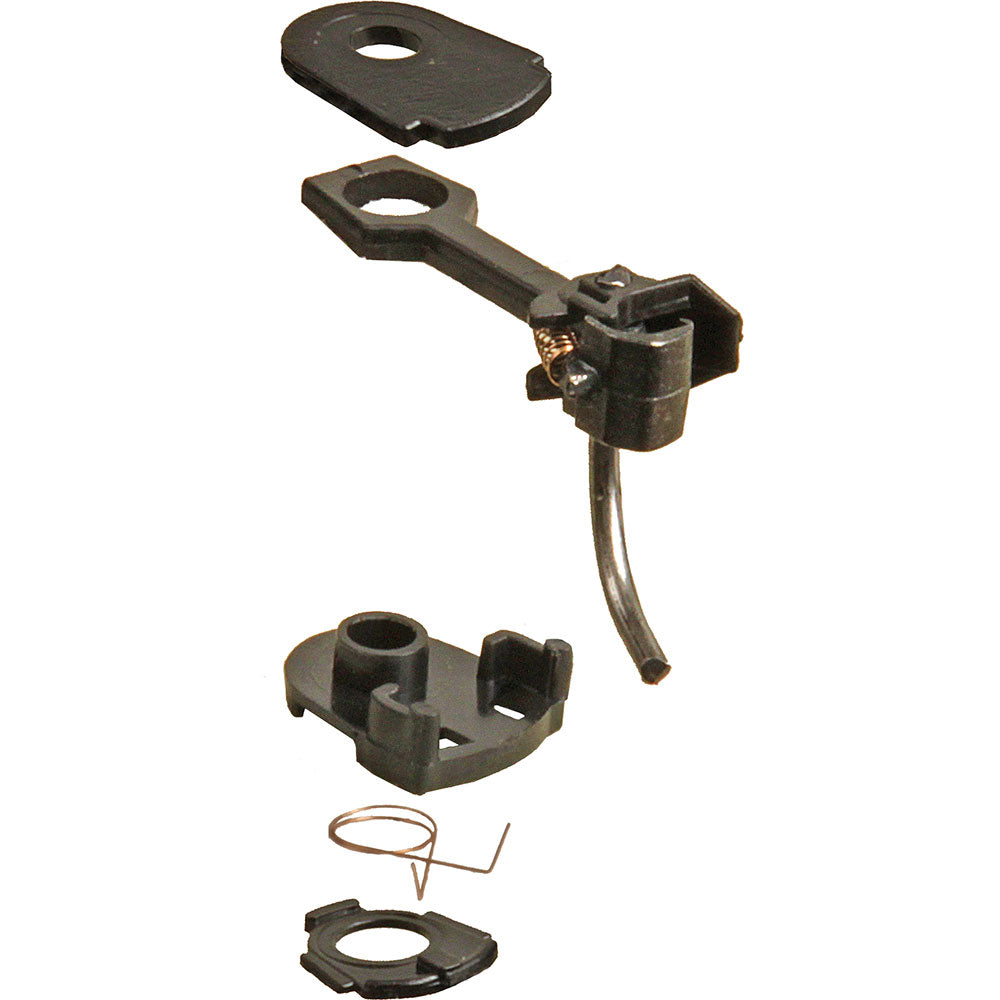

Kadee HO Scale 36 Long (25/64″) centerset shank
2 Pair
This industry leading coupler features plastic standard coupler with metal knuckle, and 621 torsion centering spring and comes complete with 233 insulated draft gearbox and lid. The 36 Magne-Matic® Metal Coupler is designed mostly for body mounting with limited space either above or below the mounting platform, with or without Draft Gear Box Lid and with Draft Gearbox Lid either on top or bottom.
Note: The 30-Series Torsion Spring can be mounted either below or above the coupler shank, but must always be mounted between the Coupler Spring Lid and Draft Gearbox.
The 146 Whisker® Metal Coupler mounted in a 252 Snap-together Gearbox is equivalent to the 36 Coupler. The Whisker® Coupler mounted in a 252 Snap-together Gear box makes for simple and easy assembly. Other Whisker® Coupler 36 equivalent options include 156 Whisker® “Scale” Metal Coupler when mounted a 252 Snap-together Gearbox.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
FEATURES:
- Material – Metal Knuckle, Plastic Coupler Shank
- Shank Length – Long (25/64″) (center hole to back of coupler head)
- Coupler Offset – Centerset
- Knuckle Spring – 622
- Centering System – Standard Shank
- Centering Spring – 621 Torsion Centering Spring
- Head – Standard Head
- Works With – 233 draft gearboxes
INCLUDES:
- (2) Pair 36 Plastic Shank Couplers – Long Centerset Shank
- (2) Pair 621 Torsion Centering Spring
- (2) Pair 233 Gearboxes & Lids
- (2) Pair 210 Washers
- (2) Pair 256 – 2-56 Screws
- (2) 622 Knuckle Springs
