Description
Kadee HO Scale 25 Short (1/4″) overset shank
2 pair

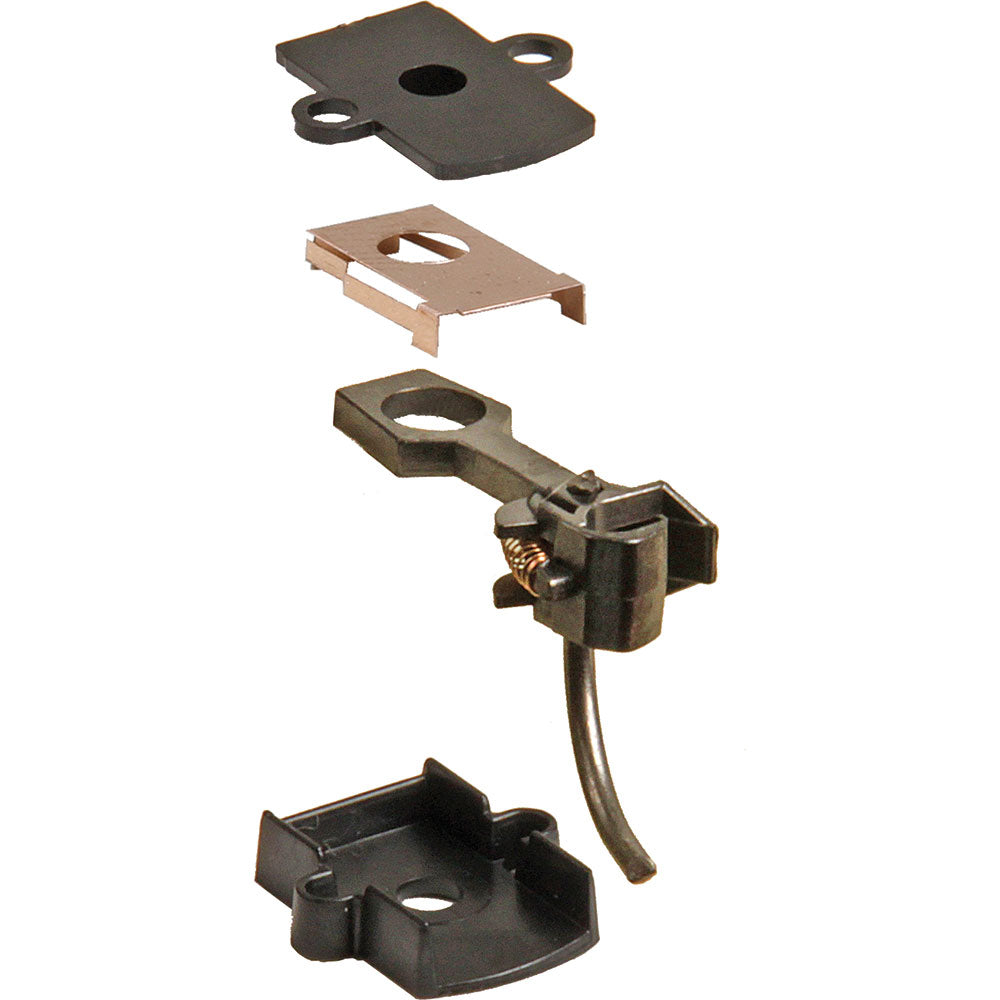

This industry leading coupler features plastic standard coupler with metal knuckle, and 634 standard centering spring and comes complete with insulated draft gearbox and lid. The25 Magne-Matic® Plastic Coupler may be mounted with the included 213 or 232 Gearbox or with most other manufacturers cast-on coupler pockets.
It is not recommended to use a metal coupler directly on a metal surface or in a metal draft gearbox to avoid possible electrical crossover and shorting that may cause damage.
INCLUDES:
- (2) Pair 25 Plastic Shank Couplers – Short Overset Shank
- (2) Pair 634 Centering Spring NO.5® Style
- (2) Pair 213 055″ ID & .100″ ID Bushing/Sleeves
- (2) Pair 212 Talgo Truck Adaptors
- (2) Pair 213 Gearboxes
- (2) Pair 232 Gearboxes
- (2) 622 Knuckle Springs
FEATURES:
- Material – Metal Knuckle, Plastic Coupler Shank
- Shank Length – Short (1/4″) (center hole to back of coupler head)
- Coupler Offset – Overset
- Knuckle Spring – 622
- Centering System – Standard Shank
- Centering Spring – 634 Centering Spring NO.5® Style
- Head – Standard Head
- Works In Place of – 145, Short Overset “clone” couplers
- Works With – 213, 232, 234, 242, most manufacturer cast-on draft gearboxes
