Description

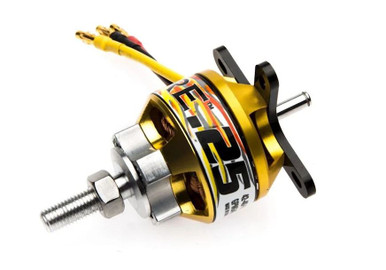

This is the Great Planes Rimfire .25 42-40-1000 Outrunner Brushless Motor. The Great Planes RimFire motors have revolutionized brushless outrunner technology! The combination of competitive price and superior performance makes these power plants a remarkable value. Equip your airplane with a Great Planes RimFire, and watch it reach new heights!
Features:
- Double shielded bearings
- Two year quality guarantee (through the manufacturer)
- Designed for explosive acceleration and maximum torque
- Virtually maintenance-free; no commutators or brushes to wear out
- For Sport airplanes up to 4.5lbs (2040g) and 3D airplanes up to 3lbs (1360g)
- Lightened aluminum can houses high torque rare earth Neodymium magnets
Includes:
Great Planes ElectriFly RimFire .25 42-40-1000 Brushless Outrunner Electric Motor with prop adapter (GPMQ4906), motor mount and 4.0mm connectors
Requires:
Propeller: 11×8.5 – 12x6E
45A ESC, can use FlightPower 40A Brushless ESC (FPWM0230)
Technical Specifications:
Can Diameter: 1.7″ (42mm)
Can Length: 1.6″ (40mm)
Shaft Diameter: 5mm
Shaft Length: .67″ (17mm)
RPM/V (kV Rating): 1000
Weight: 4.4oz (125g)
Propeller: 10.5E-11x7E
Input Voltage: 11.1-14.5V (3-4S LiPo)
Max. Constant Current: 45A
Max. Surge Current: 50A
Burst Watts: 740
Max. Constant Watts: 666W
No Load Current: 2.5A
