Description

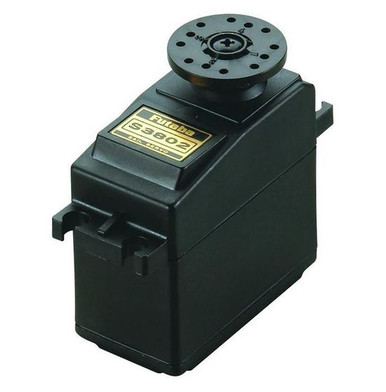

Futaba S3802 Sail Servo
| FEATURES |
Metal gears with a special interference-eliminating lubricant to
handle high torque applications.
3-pole motor
Two ball bearings
Plastic sail arm included (FSH25H), plus 22mm Round Horn
Rubber gaskets make it water and dust resistant.
One year warranty
Has an arc of 60°, it is capable of 140° with a computer radio
that has adjustable ATV
| INCLUDES |
One S3802 High Torque Sail Servo w/ J Connector
Four Mounting Screws
Four Rectangular Grommets
Four Brass eyelets
| SPECIFICATIONS |
Length: 1.7″ (1-3/4″) (44mm)
Width: 0.9″ (7/8″) (23mm)
Height: 1.7″ (1-11/16″) (43mm)
Weight: 2.5oz (2-9/16oz) (72g)
Sail Arm Length: 125mm
Torque: 122 oz-in @ 4.8V – 153 oz-in @ 6V
8.8 kg-cm @ 4.8V – 11.0 kg-cm @ 6V
Transit Time: 0.70 sec/60° @ 4.8V – 0.56 sec/60° @ 6V
