Description

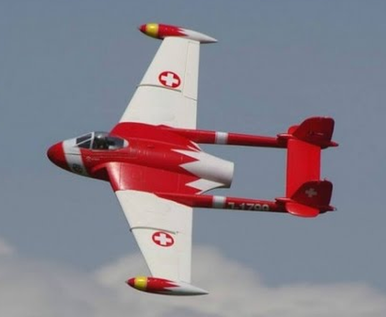

This is the new version 2 (V2) of Freewing’s Venom EDF Jet with Swiss red livery. This upgraded version has significant upgrades to both the power system and the airframe. The Venom V2 now includes a 12 blade fan, 130A Hobbywing ESC, and powerful 3748-1450kv brushless motor. Structural upgrades include an increased number of carbon wing spars for rigidity, strengthening of the overall tail section, and a complete redesign of the horizontal and vertical stabilizer sections for improve performance and scale appearance.
Features:
- New – 90mm 12 blade ducted fan with metal housing and powerful 3748-1450kV brushless motor provides awesome power and incredible real life jet turbine sound.
- New – Premium quality 130 Amp Hobbywing ESC with 8A UBEC.
- New – stronger tail section, with revised rudder and elevator.
- New – Increased carbon spar count and EPO foam construction provide the perfect balance between strength and flexibility.
- Incredible scale details including hand painted pilots, scale canopy, shock absorbing landing gear, sequenced landing doors, and stunning Swiss Air Force graphics package.
- Large, nearly 5 foot, wingspan provides incredible scale detail and easy to see even at high speeds.
- Bright LED navigation lights for enhanced realism and dawn/dusk maneuvers.
- Electronic retractable landing gear with aluminum shock absorbing struts and sequenced gear doors.
- Full function flaps allow shorter take-off distances and slow, scale landings.
- Nylon hinges on all control surfaces (superior to foam hinges).
- Motor, servos, ESC and EDF come pre-installed for your convenience
REQUIRED FOR OPERATION (NOT INCLUDED):
- 6 Channel Radio – Select a minimum 6 channel radio
- 6 Channel Receiver – Select a minimum 6 channel receiver
- 6 Cell 22.2V 4000mAh LiPo Batterywith EC5 connector
- 6 Cell Compatible Battery Charger – Select a minimum 6 cell (6S) charger
- Color Type: Red
SPECIFICATIONS:
|
Wingspan |
1500mm / 59in |
|
Length |
1100mm / 43.3in |
|
Flying Weight |
2500g / 88.2oz |
| CG (Center of Gravity) | See Manual |
|
Power System |
3748-1450kv Brushless Motor |
|
Electronic Speed Control |
130A, 8A UBEC with EC5 connector |
|
Propeller / EDF |
90mm 12-Blade EDF |
|
Servos |
9 x 9g high speed servos |
| Landing Gear | Nose and main gear have electronic retracts with shock-absorbing aluminum struts |
|
Required Battery |
6S 22.2V 3600-4000mAh 40C LiPo with EC5 connector |
|
Required Radio |
6 Channel |
| Ailerons | Yes |
|
Elevator |
Yes |
| Rudder | Yes |
|
Flaps |
Yes |
|
Lights |
Yes |
|
Hinge Type |
Nylon hinges |
| Material | EPO Foam |
| Skill Level | Intermediate |
| Build Time | 2 Hours |
| Recommended Environment | Outdoor |
