Description

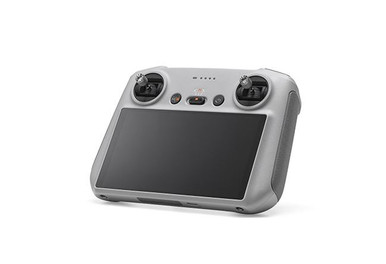

DJI RC is a remote controller that delivers an exceptional operating experience for DJI drones. With a lightweight body, FHD display, and ultra-long battery life, it also features new dual-spring control sticks for more comfortable flying and supports the advanced DJI O3+ video transmission technology. [1] With its powerful functionality, aerial creation is more convenient than ever.
Video Transmission Technology
When used with drones that support O3+ transmission, like DJI Mavic 3, [1] DJI RC can provide low-latency HD 1080p/60fps live feeds with a max transmission range of 15 km [2] for smoother control and safer flight.
Light, Compact, Powerful
Thanks to its innovative design, the antennas of DJI RC pack excellent performance in a smaller body that is built into the RC itself. The new hardware design further reduces the size of DJI RC, resulting in a weight of just 390 grams. [3]
4-Hour Ultra-Long Runtime
DJI RC’s new design enables use for up to four hours on a full charge. [4]
Compatible with the following Drone Models:
- Mini 3 Pro
- Mavic 3
What’s In The Box?
- DJI RC × 1
- DJI RC Spare Control Sticks (pair) × 1
- Type-C to Type-C PD Cable × 1
Technical Specifications:
Video Transmission
Video Transmission System: DJI RC adopts OcuSync HD video transmission technology. When connected to other compatible drone models, DJI RC will switch to the corresponding video transmission technology.
With different aircraft hardware, the corresponding video transmission specifications are as follows:
DJI Mini 3 Pro: O3
DJI Mavic 3: O3+
DJI Mavic 3 Cine: O3+
Max. Transmission Distance (unobstructed, free of interference): DJI Mini 3 Pro: 12 km (FCC); 8 km (CE/SRRC/MIC)
DJI Mavic 3: 15 km (FCC); 8 km (CE/SRRC/MIC)
DJI Mavic 3 Cine: 15 km (FCC); 8 km (CE/SRRC/MIC)
Operating Frequency*: 2.400-2.4835 GHz; 5.725-5.850 GHz
Antennas: 2 antennas, 1T2R
Transmitter Power (EIRP): 2.400-2.4835 GHz: <26 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.725-5.850 GHz: <26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)
Wi-Fi
Protocol: 802.11 a/b/g/n
Operating Frequency*: 2.400-2.4835 GHz
5.150-5.250 GHz
5.725-5.850 GHz
Transmitter Power (EIRP): 2.400-2.4835 GHz: <23 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.150-5.250 GHz: <23 dBm (FCC/CE/SRRC/MIC)
5.725-5.850 GHz: <23 dBm (FCC/SRRC), <14 dBm (CE)
Bluetooth
Protocol: Bluetooth 4.2
Operating Frequency: 2.400-2.4835 GHz
Transmitter Power (EIRP): <10 dBm
Screen
Resolution: 1920×1080
Size: 5.5 inches
Frame Rate: 60fps
Brightness: 700 nits
Touch Control: 10-point multi-touch
General Specs
Battery: Li-ion (5,200 mAh @ 3.6 V)
Charging Type: It is recommended to use a charger rated 5 V/2 A or above.
Rated Power: 4.5 W
Storage Capacity: Expandable (with microSD card)
Charging Time: 1.5 hours (with 5 V/3 A charger)
Operating Time: 4 hours
Video Output Port:
Operating Temperature: -10° to 40° C (14° to 104° F)
Storage Temperature: Within one month: -30° to 60° C (-22° to 140° F)
One to three months: -30° to 45° C (-22° to 113° F)
Three to six months: -30° to 35° C (-22° to 95° F)
More than six months: -30° to 25° C (-22° to 77° F)
Charging Temperature: 5° to 40° C (41° to 104° F)
Supported Aircraft Models**: DJI Mini 3 Pro
DJI Mavic 3
DJI Mavic 3 Cine
GNSS : GPS + BeiDou + Galileo
Dimensions (L×W×H): Without control sticks: 168.4×123.7×46.2 mm
With control sticks: 168.4×123.7×62.7 mm
Weight: Approx. 390 g
Model: RM330
Storage
Supported SD Cards: UHS-I Speed Grade 3 rating microSD card or above
Recommended microSD Cards: SanDisk Extreme PRO 64GB V30 A2 microSDXC
SanDisk High Endurance 64GB V30 microSDXC
SanDisk Extreme 128GB V30 A2 microSDXC
SanDisk Extreme 256GB V30 A2 microSDXC
SanDisk Extreme 512GB V30 A2 microSDXC
Lexar 667x 64GB V30 A2 microSDXC
Lexar High-Endurance 64GB V30 microSDXC
Lexar High-Endurance 128GB V30 microSDXC
Lexar 667x 256GB V30 A2 microSDXC
Lexar 512GB V30 A2 microSDXC
Samsung EVO 64GB V30 microSDXC
Samsung EVO Plus 128GB V30 microSDXC
Samsung EVO Plus 256GB V30 microSDXC
Samsung EVO Plus 512GB V30 microSDXC
Kingston 128GB V30 microSDXC
