Description

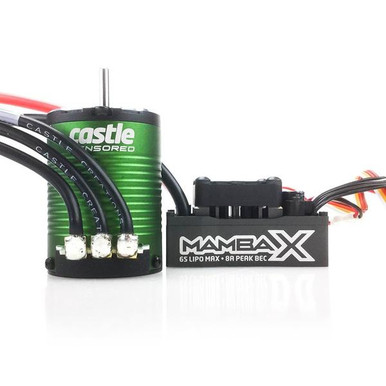

CSE010015501 CASTLE CREATIONS – MAMBA X SENSORED 25.2V WATERPROOF ESC 1406-4600KV COMBO
Features
- 2S to 6S input voltage range
- Sensored Motor Support
- Waterproof ESC
- Rugged CNC Aluminum Case
- 8A adjustable BEC (5.25V-8.0V)
- Castle Link Programming Support
- Data Logging
- 54.4mm x 35.2mm x 30.0mm (w/fan)
- Telemetry capable with Castle Telemetry Devices and compatible transmitters
- Integrated Capacitors
- Integrated 4mm Bullet Connectors
- Waterproof Switch
- 12 AWG Power Wires
- Removable 30mm ESC Cooling Fan
- SMARTSENSE™
- Audible Alerts
- 101 grams, potted (No connector on power wires)
- Castle Creations’ 1-year warranty and unparalleled customer support
- Also available as a combo with various motors
Specifications:
| Adjustable Timing: | Yes |
| BEC: | Yes |
| BEC Continous Current: | 8A |
| BEC Voltage: | 5.25V-8.0V |
| Battery Input Lead: | 4mm Bullet |
| Brakes: | Electronic |
| Drive Type: | Forward/Brake/Reverse |
| Forward: | Yes |
| Height: | 1.18 in(30.0mm) |
| Input Voltage: | ESC 2S to 6S input voltage range, Motor will vary |
| Length: | 2.14 in (54.4mm) |
| Low-Voltage Cutoff Programmable: | Yes |
| Motor Output Lead: | 4mm Bullet |
| Programmable: | Yes |
| RPM/Volt (Kv): | 4600Kv |
| Reverse: | Yes |
| Sensored: | No,Yes |
| Shaft Diameter: | Motor 1/8 in (3.17mm) |
| Speed Control Type: | Brushless – Sensorless,Brushless – Sensored and Sensorless |
| Type: | Brushless ESC and Motor |
| Water-Resistant: | Yes |
| Weight: | 3.56 oz (101 grams), potted (No connector on power wires) |
| Width: | 1.38 in (35.2mm) |
Manuals:
CSE010015501-Manual-English
CSE010015501-Mamba-Quick-Start-Guide-English
CSE010015501-Sensored-Motor-Quick-Start-Guide-English
